Customer witness
Leading technology, best-selling overseas, always chosen by customers from over 30 countries such as China, India, Malaysia, South Africa, etc
Urea Liquid Production Machine

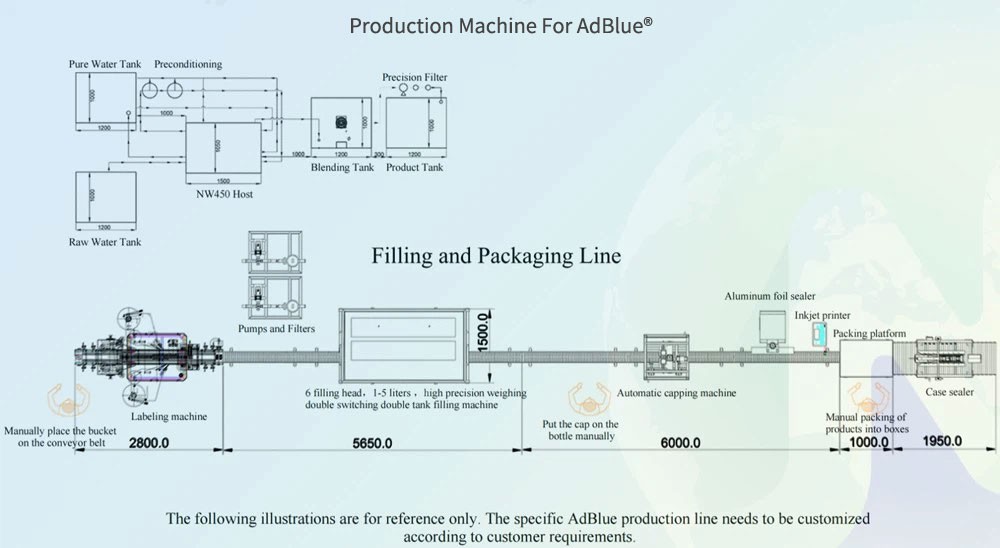

The following illustrations are for reference only. The specific production line needs to be customized according to customer requirements.
Host:
●U-PVC pipeline ● Pure water instant heating system
● Bipolar RO plus EDI system ●Pressure flow sensor system ●PLC automation system ●Cloud based transmission system ●Quality monitoring system ●Sensor
Stirring system:
●304stainless steel ● High speed variable frequency motor stirring ●German urea quality sensor● Quality sensor ● Stainless steel pure water delivery pump ●Pure water automatic heating constant temperature system
Precision filtration system:
●Primary coarse filtration ● Secondary precision filtration
● Tertiary precision filtration ● Stainless steel filter pump ●Super filtering
Intelligence control system:
●System self-test● Remote monitoring● Consumable reminder● Error reminder● Urea concentration self check
● One click start● 7-inch touch screen
● European standard electronic control panel
● Filling control system
● Continuous monitoring of water quality
● flow monitoring
●All devices are connected to the Industrial Internet Intelligent Monitoring System of the New Blue Cloud Platform
|
Capacity |
40-60 ton |
Area |
60㎡ |
|
Applicable voltage |
380V/220V |
Applicable water source |
Groundwater/ tap water |
|
Ultra pure water resistivity |
≥15M
|
Power |
48-72kw |
Filling Equipment
Filling Speed
Filling 1-5 liters of 300-500 barrels per hour,
160-260 barrels per hour at 10-25 liters.
Quantitative tolerance
1-5 liters ≤ (within 5 grams)
10-25 liters ≤ (within 10 grams)
2+2 (1-25L)High precision weighing and filling
Customizable according to customer production capacity of 4-12 heads
The three row weighing filling machine is a filling machine developed by our company for small and medium-sized packaging filling. This machine adopts a separation method of the in and out barrel conveying line, and the barrels are pushed to the weighing platform through the pushing device on the in barrel conveying line. The filled barrels are pushed to the out barrel conveying line by the power transmission device in the weighing area. Due to the ability to prepare the bottles and barrels during the filling process, compared to a single row linear filling machine, it has a shorter working cycle and improves the production efficiency. The operation process can be adjusted to the target filling device on the touch screen, and each filling valve can be fine tuned according to the filling amount. During the filling process, it achieves high, medium, and low speeds, with a high degree of intelligence. No barrels or cans are filled, and the output is automatically calculated.
Filling Equipment
10 head (1-5/5-25 liters) inline high-precision weighing and filling machine
FillingSpeed
1-5 liters 120-180 barrels/head/hour 10-25 liters 70-120 barrels/head/hour
Quantitative tolerance
1-5 liters ≤ ± 0.2% FS (within 5 grams) 10-25 liters ≤ ± 0.2% FS (within 10 grams)
Customizable according to customer production capacity of 4-12 heads
